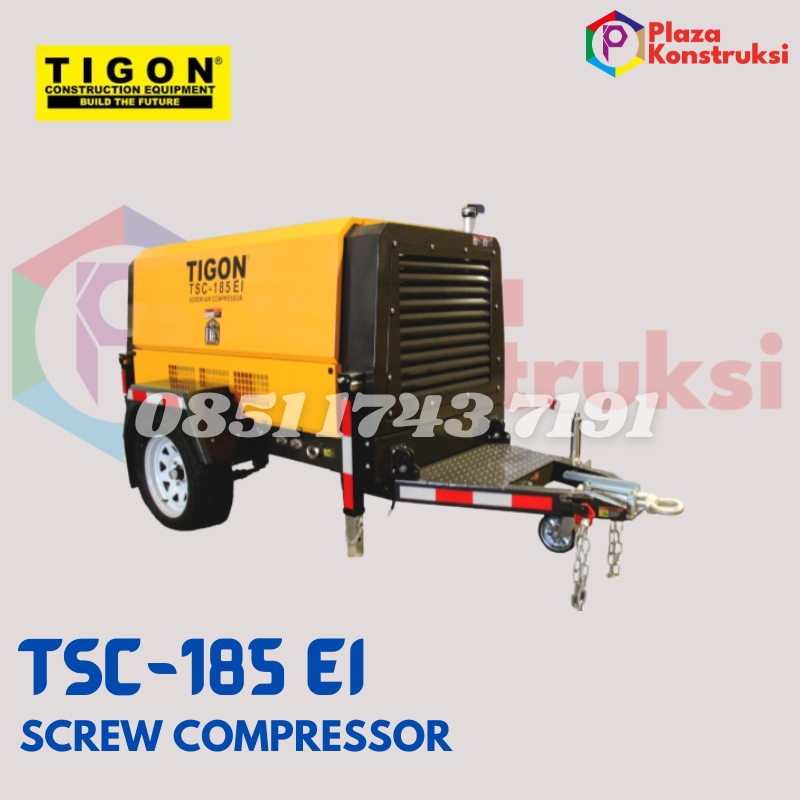

Compressor TIGON TSC-185 EI

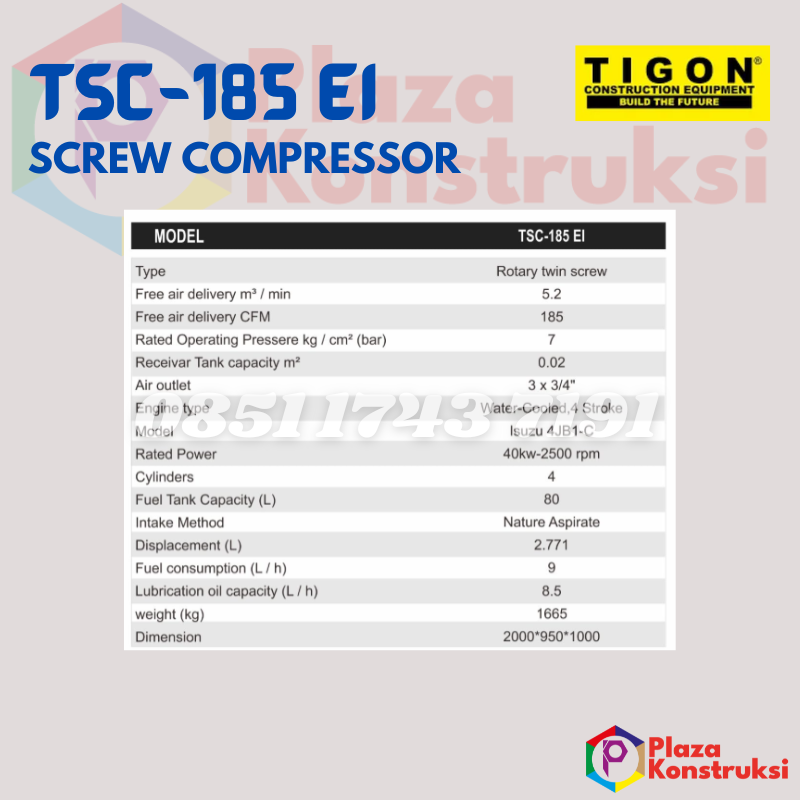

Model : TSC-185 EI
Type : Rotary Twin Screw
Free Air Delivery (m³/min) : 5.2
Free Air Delivery (CFM) : 185
Rated Operating Pressure (kg/cm² | bar) : 7
Receiver Tank Capacity (m²) : 0.02
Air Outlet : 3 x 3/4″
Engine Type : Water-Cooled, 4-Stroke
Engine Model : Isuzu 4JB1-C
Rated Power : 40 kW – 2500 rpm
Cylinders : 4
Fuel Tank Capacity (L) : 80
Intake Method : Natural Aspirated
Displacement (L) : 2.771
Fuel Consumption (L/h) : 9
Lubrication Oil Capacity (L) : 8.5
Weight : 1665 kg
Dimension (mm) : 2000 x 950 x 1000
