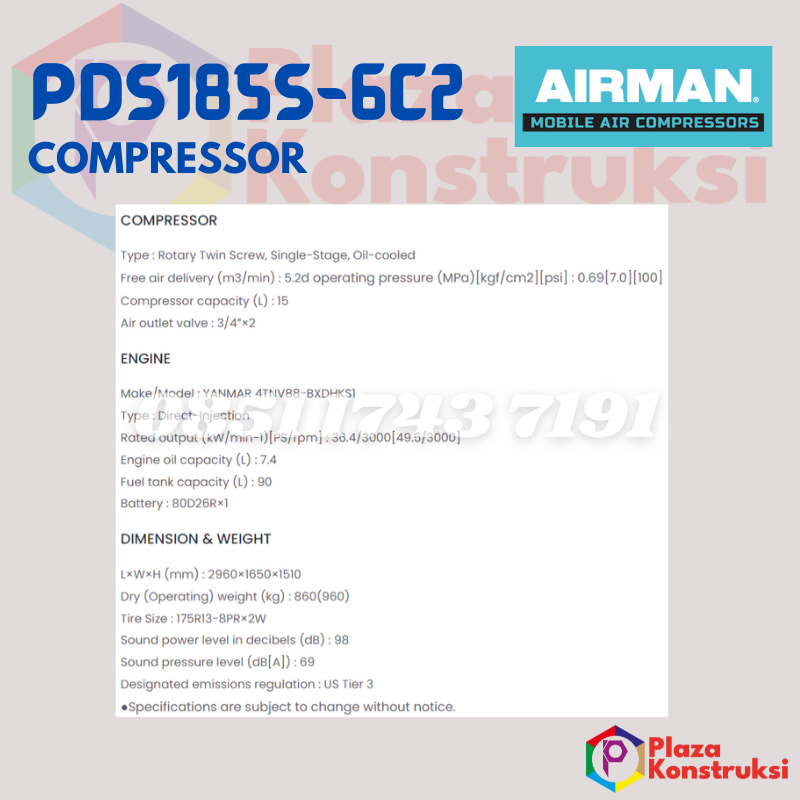

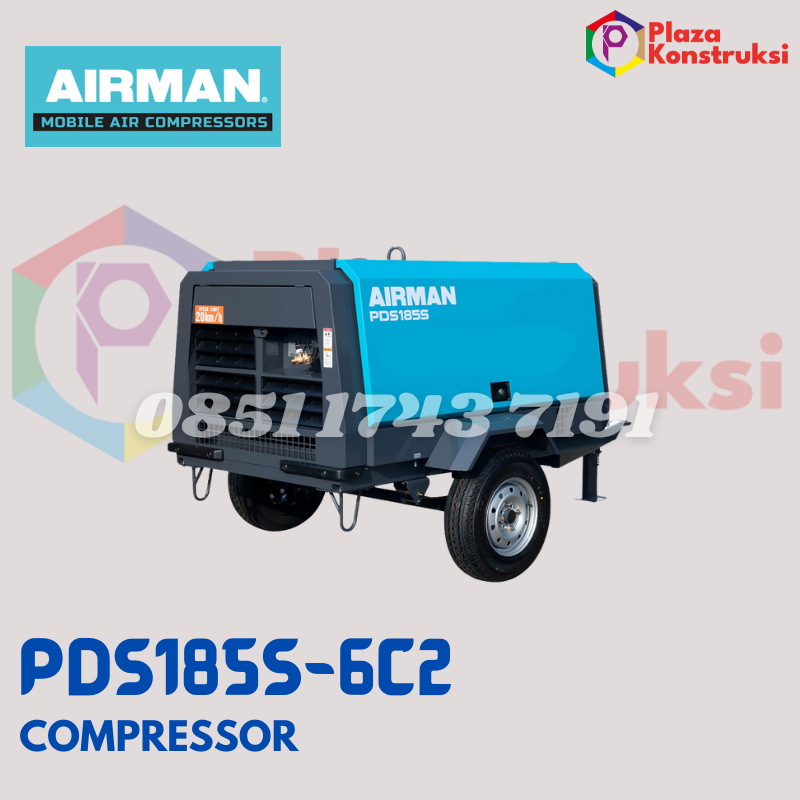

Compressor AIRMAN PDS185S-6C2

COMPRESSOR
Type : Rotary Twin Screw, Single-Stage, Oil-cooled
Free air delivery (m3/min) : 5.2d operating pressure (MPa)[kgf/cm2][psi] : 0.69[7.0][100]
Compressor capacity (L) : 15
Air outlet valve : 3/4″×2
ENGINE
Make/Model : YANMAR 4TNV88-BXDHKS1
Type : Direct-Injection
Rated output (kW/min-1)[PS/rpm] : 36.4/3000[49.5/3000]
Engine oil capacity (L) : 7.4
Fuel tank capacity (L) : 90
Battery : 80D26R×1
DIMENSION & WEIGHT
L×W×H (mm) : 2960×1650×1510
Dry (Operating) weight (kg) : 860(960)
Tire Size : 175R13-8PR×2W
Sound power level in decibels (dB) : 98
Sound pressure level (dB[A]) : 69
Designated emissions regulation : US Tier 3
●Specifications are subject to change without notice
