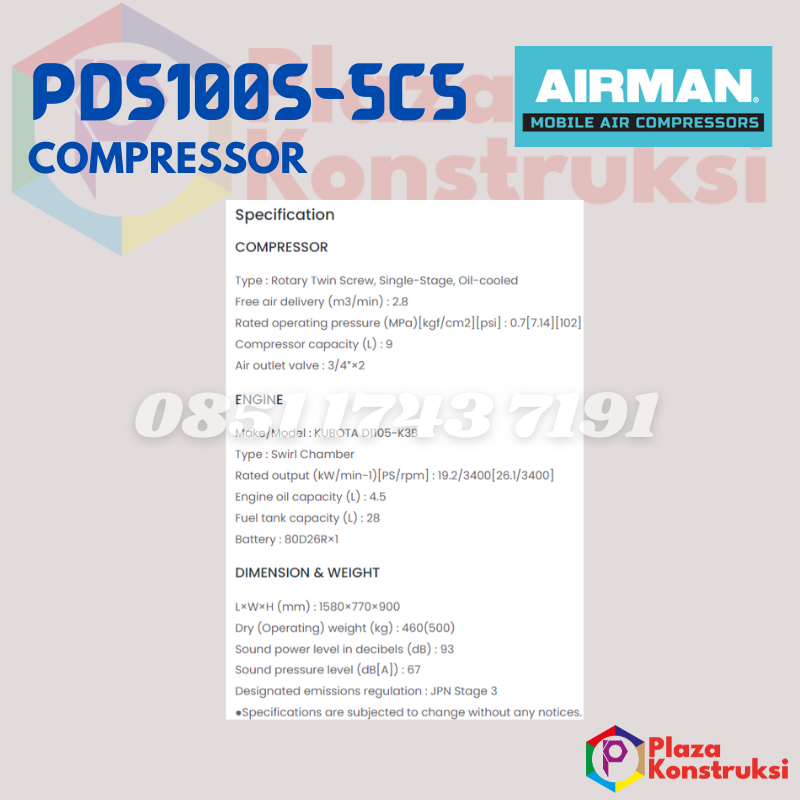

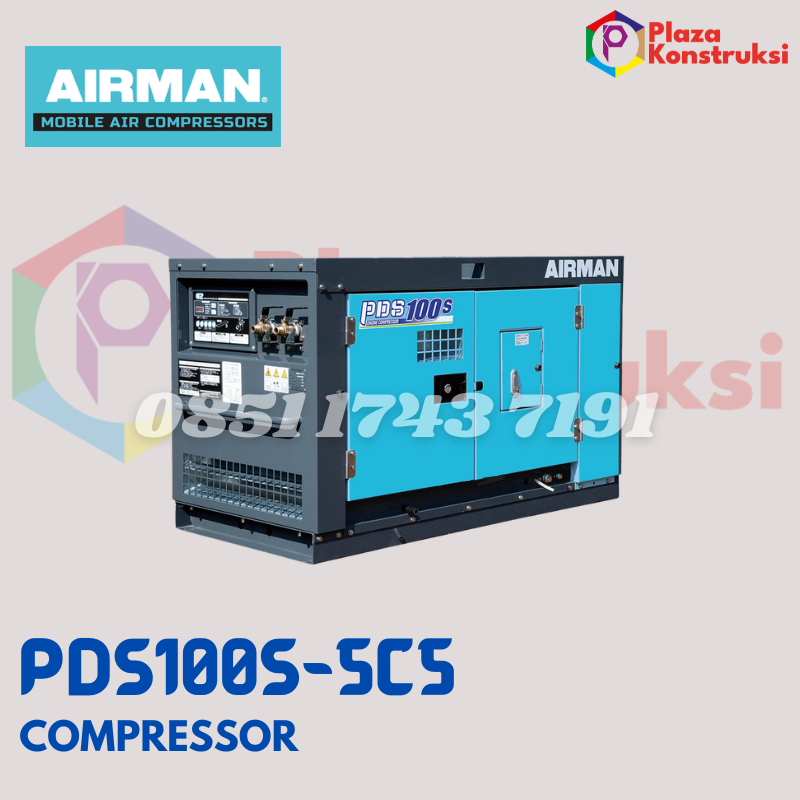

Compressor AIRMAN PDS100S-5C5

COMPRESSOR
Type : Rotary Twin Screw, Single-Stage, Oil-cooled
Free air delivery (m3/min) : 2.8
Rated operating pressure (MPa)[kgf/cm2][psi] : 0.7[7.14][102]
Compressor capacity (L) : 9
Air outlet valve : 3/4″×2
ENGINE
Make/Model : KUBOTA D1105-K3B
Type : Swirl Chamber
Rated output (kW/min-1)[PS/rpm] : 19.2/3400[26.1/3400]
Engine oil capacity (L) : 4.5
Fuel tank capacity (L) : 28
Battery : 80D26R×1
DIMENSION & WEIGHT
L×W×H (mm) : 1580×770×900
Dry (Operating) weight (kg) : 460(500)
Sound power level in decibels (dB) : 93
Sound pressure level (dB[A]) : 67
Designated emissions regulation : JPN Stage 3
●Specifications are subjected to change without any notices.
